Federgraph Formula

The formula of Sample 1

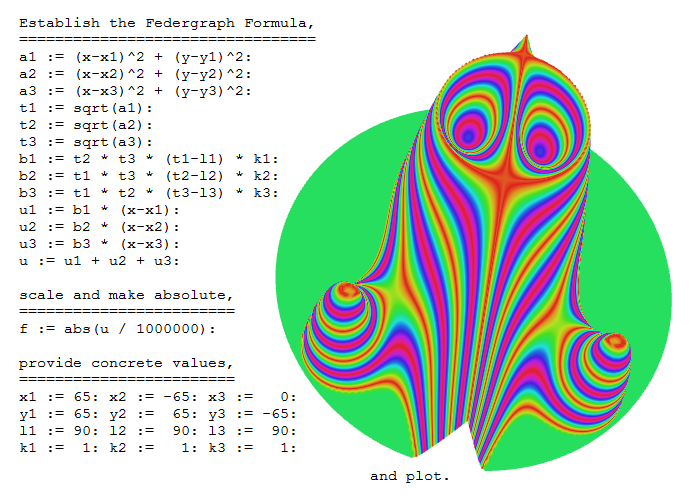

The Federgraph application does not only plot Betrag, Richtung, and Energie, but also something like abs(u), even if this is just for fun. Sample 1 in the Federgraph application uses the formula shown in the following image.

Federgraph formula

The formula above is given in Maple syntax.

Using an old version of Maple

The monument of Federgraph ancestors:

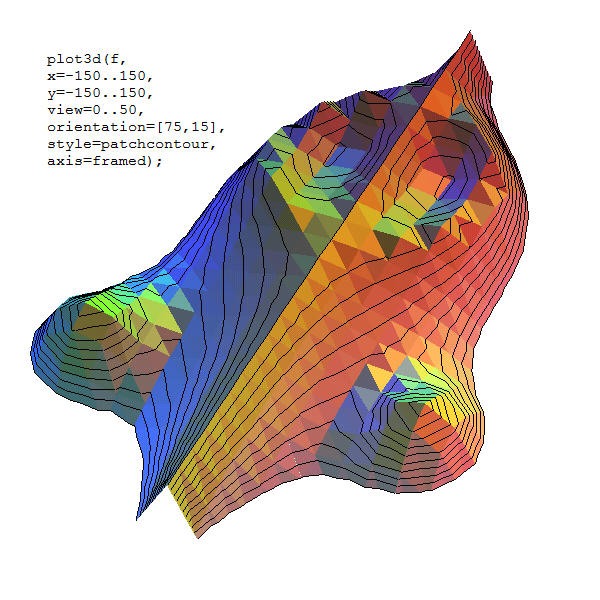

old Federgraph plot

The image shows that the sample can be recreated in the old 16 bit student version of Maple, which I used back in 1994.

Using a current version of Maxima

Maxima is a free program you can use to prove it; just copy and paste the text out of the following preformatted paragraph into Maxima:

/* Establish the Federgraph formula */

a1: (x-x1)^2 + (y-y1)^2$
a2: (x-x2)^2 + (y-y2)^2$
a3: (x-x3)^2 + (y-y3)^2$

t1: sqrt(a1)$
t2: sqrt(a2)$
t3: sqrt(a3)$

b1: t2 * t3 * (t1-l1) * k1$
b2: t1 * t3 * (t2-l2) * k2$
b3: t1 * t2 * (t3-l3) * k3$

u1: b1 * (x-x1)$
u2: b2 * (x-x2)$
u3: b3 * (x-x3)$

u: u1 + u2 + u3$

/* scale and make absolute */

f: abs(u / 1000000)$

/* provide concrete values */

x1: 65$ x2:-65$ x3:  0$
y1: 65$ y2: 65$ y3:-65$
l1: 90$ l2: 90$ l3: 90$
k1:  1$ k2:  1$ k3:  1$

/* and plot */
plot3d(f, [x,-150,150], [y,-150,150],  [z,0,50],  [plot_format,gnuplot]);

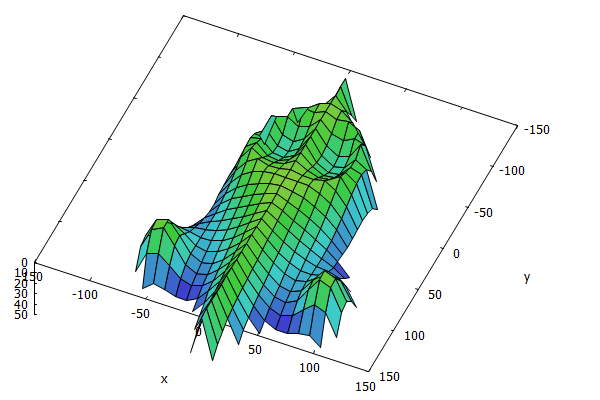

Federgraph image created with gnuplot

The image above is a screenshot of the gnuplot output.

Using Mathematica

This will work on the Raspberry Pi where Mathematica is a free download.

(* Clear *)
ClearAll[x1, x2, x3]
ClearAll[y1, y2, y3]
ClearAll[l1, l2, l3]
ClearAll[k1, k2, k3]

(* Establish the Federgraph formula *)
a1=(x-x1)^2+(y-y1)^2;
a2=(x-x2)^2+(y-y2)^2;
a3=(x-x3)^2+(y-y3)^2;

t1=Sqrt[a1];
t2=Sqrt[a2];
t3=Sqrt[a3];

b1=t2*t3*(t1-l1)*k1;
b2=t1*t3*(t2-l2)*k2;
b3=t1*t2*(t3-l3)*k3;

u1=b1*(x-x1);
u2=b2*(x-x2);
u3=b3*(x-x3);

u=u1+u2+u3;

(*scale and make absolute*)
f= Abs[u/1000000]

(*provide concrete values*)
x1=65;
x2=-65;
x3=0;
y1=65;
y2=65;
y3=-65;
l1=90;
l2=90;
l3=90;
k1=1;
k2=1;
k3=1;

(*and plot*)
Plot3D[f,{x,-150,150},{y,-150,150}, PlotRange -> {0, 50}]

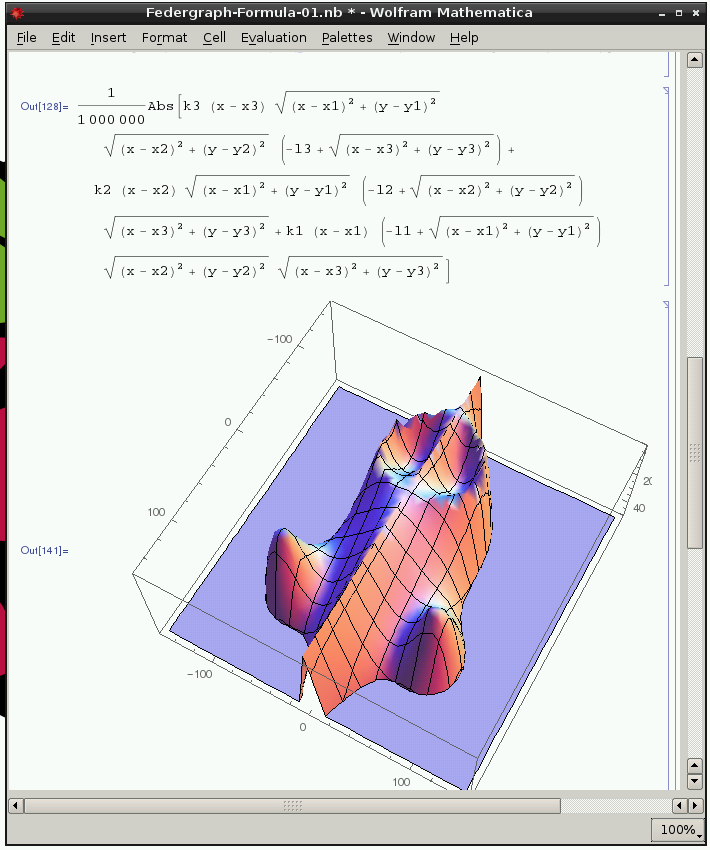

Federgraph image created with Mathematica on a Raspberry Pi

Using Sage

# provide concrete values
x1=65; x2=-65; x3=0
y1=65; y2= 65; y3=-65;
l1=90; l2= 90; l3= 90;
k1= 1; k2=  1; k3=  1;

# establish the Federgraph formula
x, y = var('x,y')

a1=(x-x1)^2+(y-y1)^2;
a2=(x-x2)^2+(y-y2)^2;
a3=(x-x3)^2+(y-y3)^2;

t1=sqrt(a1);
t2=sqrt(a2);
t3=sqrt(a3);

b1=t2*t3*(t1-l1)*k1;
b2=t1*t3*(t2-l2)*k2;
b3=t1*t2*(t3-l3)*k3;
u1=b1*(x-x1);
u2=b2*(x-x2);
u3=b3*(x-x3);

u=u1+u2+u3;

# scale and make absolute
f= abs(u/1000000)

def g(x, y):
    temp = f(x, y)
    if temp > 50:
        temp = 50
    if temp < 0:
        temp = 0
    return temp

# and plot
plot3d(g, (x,-150,150), (y,-150,150) )

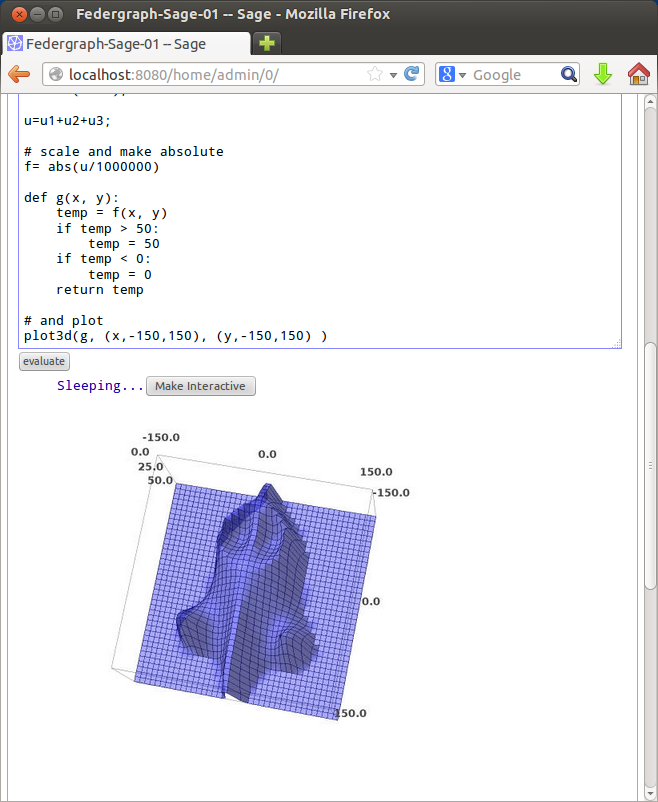

Federgraph image created with Sage on Ubuntu

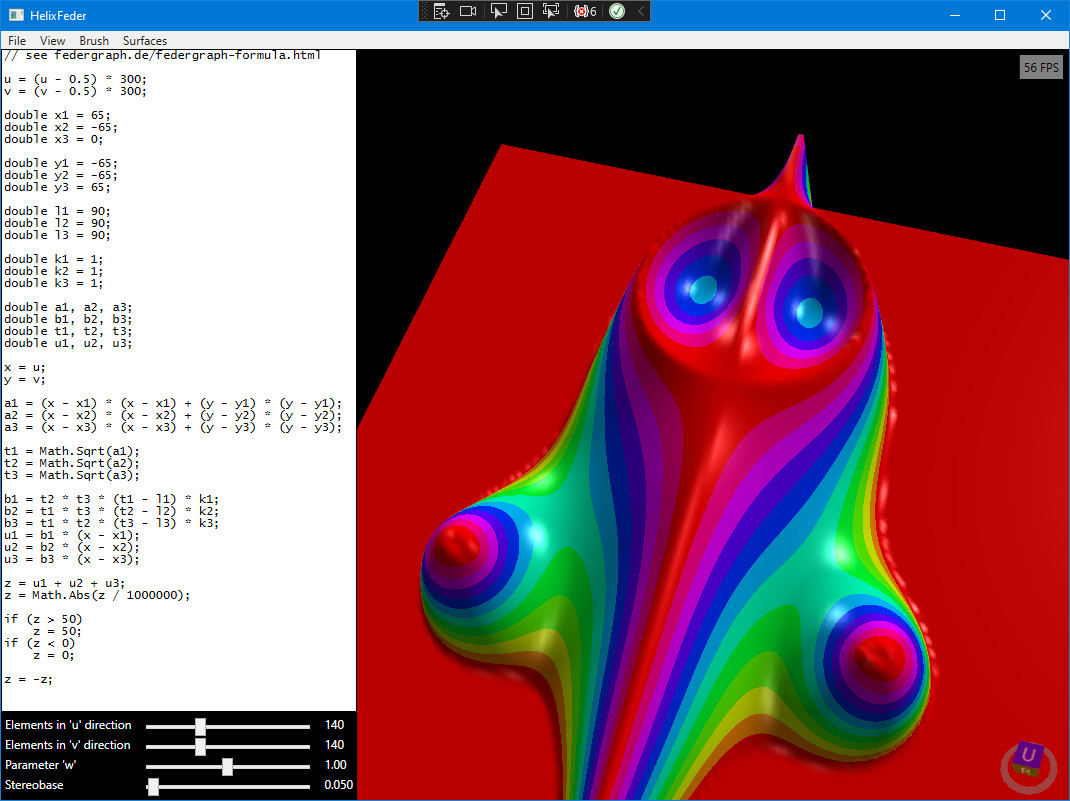

Other tools used?

I like to look at recreations of the creature, make sure you mention @federgraph on instagram.

21st century X-Eyes

If you change the texture parameters, Federgraph rolls with its eyes. It may be seen as a modern age (GPU intensive) alternative to X-Eyes, which you must see live!
